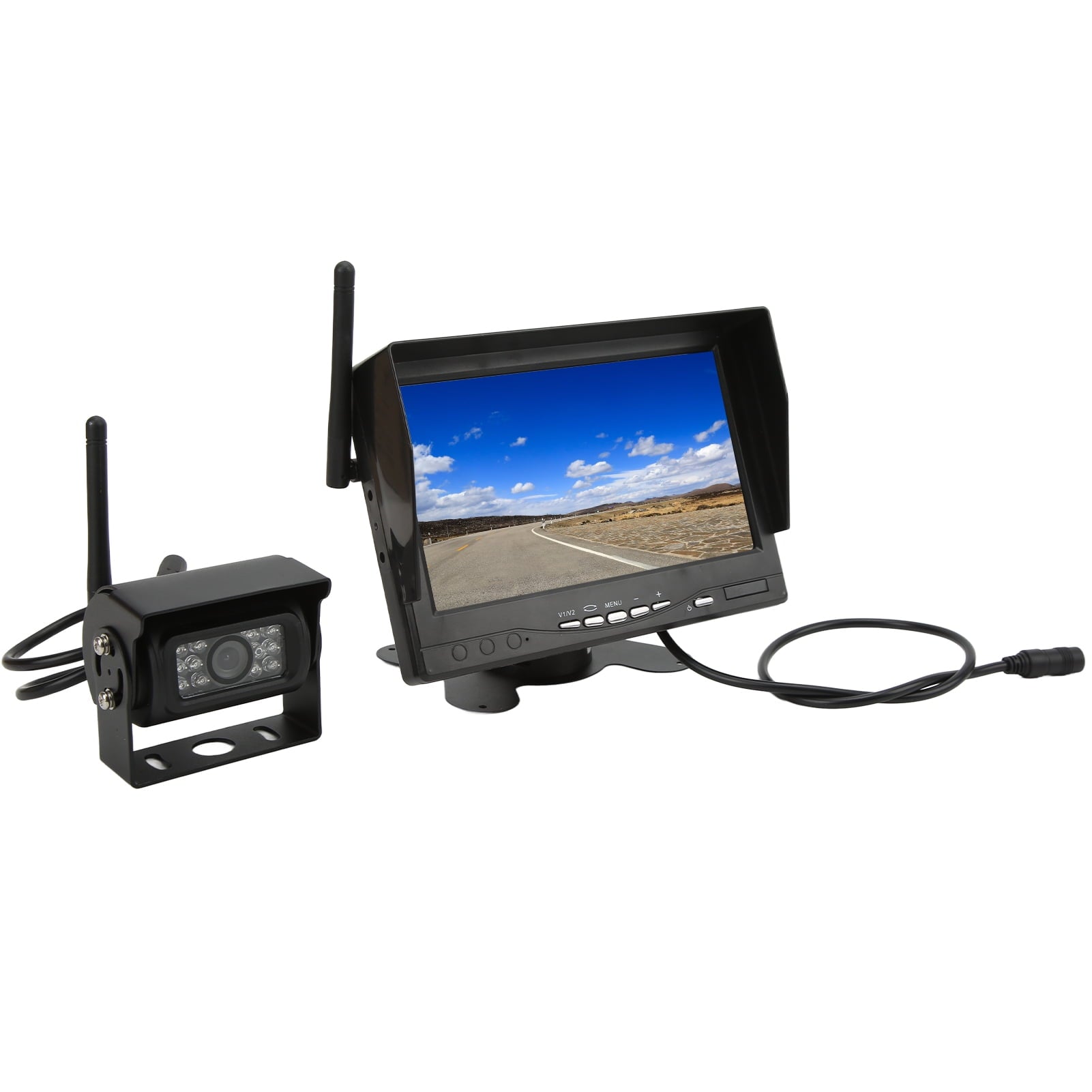

Wireless Backup Recorder Kit 7in IPS Screen Wireless Reverse Camcorder Set for Truck Trailer RV Pickups Camping Vehicle Van
$28.71
Skip to product information
Item Type: Wireless Backup Camcorder Kit
Material: ABS+Metal
Model: 2.4GHz wireless display
Screen Size: Approx. 17.8x11.8cm / 7x4.6in
Total Length: Approx. 15cm / 5.9in
Base Width: Approx. 12cm / 4.7in
Display: 7in IPS screen
Resolution: 1280x720
Backlight Brightness: LED, 500cd/©O
Contrast Ratio: 500:01:00
Viewing Angle: UP-50¡ã, DOWN-70¡ã, LEFT-70¡ã RIGHT-70¡ã
OSD: English
Video Screen Display: One way display (4 channels can be connected)
Storage: Storage card storage (support 128GB) (not included)
Working Voltage: DC 5-40V
Power Consumption: <5W
Maximum Current: <550mA
Working Temperature: -10¡æ-60¡æ / 14¨H-140¨H
Storage Temperature: -20¡æ-70¡æ / -4¨H-158¨H
Shockproof Level: 7G
Wireless Transmission Distance: Approx.1500m / 4921ft (open distance)
Wireless Bandwidth Range: 2403-2480MHz
Electrical Performance Parameters Of Wireless Camera:
Model: Wireless Recorder
Image Sensor: 1/3 CMOS H65
Resolution: 1292(H)x968(V)
Lens: Approx. 2.8mm / 0.11in
Low Illumination: 0.001 LX
Wide Viewpoint Viewing Angle: 120¡ã
Infrared Lamp Power Consumption: DC12V 100mA¡À5% 1W
IR Switcher Output Switching Power Consumption: DC3-5V 0.05A 1W
Shell: Metal
Standard: PAL, positive image
Scanning Method: 2:1 interlaced scan
Synchronization Method: Internal synchronization
Signal Display Noise Ratio: ¡Ý48dB
AWB: Display Off
Infrared Light: 18 x ¡é5(12mil) infrared light
Infrared Distance: Approx. 15m / 49ft
Infrared Switching: Automatic Switching
Auto Shutter: 1/50~1/100.000 sec.
Video Output: 1.0Vp-p 75 ohm
Connection Method: DC connector
Waterproof Rating: IP68
Shock Resistance Rating: 10G
Colour: Black
Applicability: For truck, trailer, RV, pickups, camping car, van, farm
Wireless Backup Recorder Kit 7in IPS Screen Wireless Reverse Camcorder Set for Truck Trailer RV Pickups Camping Vehicle Van
$28.71
Material: ABS+Metal
Model: 2.4GHz wireless display
Screen Size: Approx. 17.8x11.8cm / 7x4.6in
Total Length: Approx. 15cm / 5.9in
Base Width: Approx. 12cm / 4.7in
Display: 7in IPS screen
Resolution: 1280x720
Backlight Brightness: LED, 500cd/©O
Contrast Ratio: 500:01:00
Viewing Angle: UP-50¡ã, DOWN-70¡ã, LEFT-70¡ã RIGHT-70¡ã
OSD: English
Video Screen Display: One way display (4 channels can be connected)
Storage: Storage card storage (support 128GB) (not included)
Working Voltage: DC 5-40V
Power Consumption: <5W
Maximum Current: <550mA
Working Temperature: -10¡æ-60¡æ / 14¨H-140¨H
Storage Temperature: -20¡æ-70¡æ / -4¨H-158¨H
Shockproof Level: 7G
Wireless Transmission Distance: Approx.1500m / 4921ft (open distance)
Wireless Bandwidth Range: 2403-2480MHz
Electrical Performance Parameters Of Wireless Camera:
Model: Wireless Recorder
Image Sensor: 1/3 CMOS H65
Resolution: 1292(H)x968(V)
Lens: Approx. 2.8mm / 0.11in
Low Illumination: 0.001 LX
Wide Viewpoint Viewing Angle: 120¡ã
Infrared Lamp Power Consumption: DC12V 100mA¡À5% 1W
IR Switcher Output Switching Power Consumption: DC3-5V 0.05A 1W
Shell: Metal
Standard: PAL, positive image
Scanning Method: 2:1 interlaced scan
Synchronization Method: Internal synchronization
Signal Display Noise Ratio: ¡Ý48dB
AWB: Display Off
Infrared Light: 18 x ¡é5(12mil) infrared light
Infrared Distance: Approx. 15m / 49ft
Infrared Switching: Automatic Switching
Auto Shutter: 1/50~1/100.000 sec.
Video Output: 1.0Vp-p 75 ohm
Connection Method: DC connector
Waterproof Rating: IP68
Shock Resistance Rating: 10G
Colour: Black
Applicability: For truck, trailer, RV, pickups, camping car, van, farm
1 x?Backup?Camera
1 x Mounting Bracket
1 x Wireless Camera
1 x Antenna
1 x Manual?
